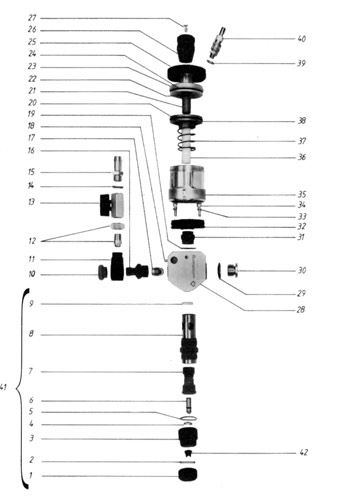

| COD | DESCRIPTION |
|---|
| W01 |
NOZZEL NUT |
(1) |
| W02 |
TEFLON SEAL |
(2) |
| W03 |
RETAINING NUT |
(3) |
| W04 |
VALVE SEAT |
(4) |
| W05 |
O-RING |
(5) |
| W06 |
VALVE PISTON |
(6) |
| W07 |
PISTON GUIDE COMPLETE |
(7) |
| W08 |
CARTRIDGE BODY |
(8) |
| W09 |
CUP SEAL |
(9) |
| W10 |
SEALING CUP |
(10) |
| W11 |
ADAPTER |
(11) |
| W12 |
THREADED BUSH INCL. NUT |
(12) |
| W13-H182-HDPII55 |
STOP COCK |
(13) |
| H185-HDPII54-W14 |
SEALING RING ¼” |
(14) |
| H131-HDPII56-W15 |
HOSE CONNECTION |
(15) |
| W16 |
CONNECTION PIECE |
(16) |
| W17 |
COMPLETE CHECK VALVE |
(17) |
| W18 |
GROOVED PIN |
(18) |
| W19 |
O-RING |
(19) |
| H168/A-HDPII64-W20 |
FLAT SEAL RING FOR PISTON |
(20) |
| W21-HDPII66 |
SPINDLE |
(21) |
| H161-HDPII74-W22 |
O-RING X BUSSOLA GUIDA |
(22) |
| W23-HDPII67 |
CYLINDER COVER |
(23) |
| H170-HDPII73-W24 |
CYLINDER COVER O-RING |
(24) |
| H117-HDPII68-W25 |
RETAINING NUT |
(25) |
| W26-HDPII69 |
KNURLED KNOB |
(26) |
| W27-HDPII70 |
FLAT HEAD SCREW |
(27) |
| W28 |
GUN BODY |
(28) |
| H167-HDPII58-W29 |
USIT SEALING RING |
(29) |
| W30 |
INSPECTION PLUG |
(30) |
| W31 |
BUSH |
(31) |
| W32 |
CYLINDER FLANGE |
(32) |
| W33 |
RETAINING RING |
(33) |
| W34 |
FASTENING SCREW |
(34) |
| W35-HDPII60 |
CYLNDER |
(35) |
| W36 |
PLUNGER |
(36) |
| W37-HDPII63 |
COMPRESSION SPRING |
(37) |
| W38-HDPII75 |
PISTON ASSEMBLY |
(38) |
| W39-HDPII72 |
COPPER SEALING RING 1/8” |
(39) |
| W40-HDPII71 |
QUICK CONNECTION |
(40) |
| W42/W42-20/W43/W43-65/ W44/W45 |
NOZZLE STANDARD 0° -120° |
|
| W46/W46-65/W47/W47-120 |
HARDENED NOZZLE 40°/ 65°/90°/120° |
|
| W48 |
AUTOMATIC MACHINE DAFNE3 NO NOZZLE |
|
