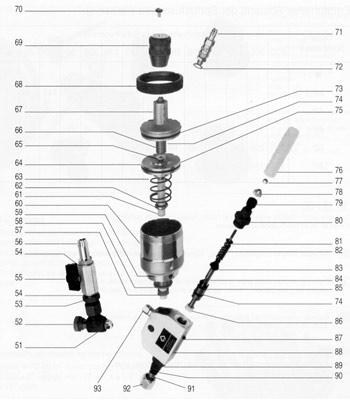

| COD | DESCRIPTION | |
|---|---|---|
| H181-HDPII51 | BANJO CONNECTION | (51) |
| H124-HDPII52 | CHECK VALVE ASSEMBLY | (52) |
| H135-HDPII53 | CONNECTION PIECE | (53) |
| H185-HDPII54-W14 | COPPER SEALING RING | (54) |
| W13-H182-HDPII55 | STOP COCK | (55) |
| H131-HDPII56-W15 | HOSE CONNECTION | (56) |
| H166-HDPII57 | CUP SEAL FOR PLUNGER | (57) |
| H167-HDPII58-W29 | USIT SEALING RING | (58) |
| H II 59 | CYLINDER FLANGE | (59) |
| W35-HDPII60 | CYLINDER | (60) |
| H115-HDPII61 | PLUNGER | (61) |
| H II 62 | STRIP RING | (62) |
| W37-HDPII63 | COMPRESSION SPRING | (63) |
| H168/A-HDPII64-W20 | SEALING RING FOR PISTON ASSEMBLY | (64) |
| H169-HDPII65 | COUNTERSUNK SCREW | (65) |
| W21-HDPII66 | SPINDLE | (66) |
| W23-HDPII67 | CYLINDER COVER | (67) |
| H117-HDPII68-W25 | RETAINING NUT | (68) |
| W26-HDPII69 | KNURLED KNOB | (69) |
| W27-HDPII70 | FLAT HEAD SCREW | (70) |
| W40-HDPII71 | QUICK CONNECTION | (71) |
| W39-HDPII72 | COPPER SEALING RING 1/8” | (72) |
| H170-HDPII73-W24 | O-RING | (73) |
| H161-HDPII74-W22 | BUSH O-RING | (74) |
| W38-HDPII75 | PISTON ASSEMBLY | (75) |
| H163-HDPII76 | PROTECTION CAP | (76) |
| H165-HDPII77 | HEXAGON NUT | (77) |
| H109-HDPII78 | KNURLED NUT | (78) |
| H104-HDPII79 | COMPRESSION SCREW | (79) |
| H103-HDPII80 | THREADED BUSHING | (80) |
| H105-HDPII81 | SPRING PLATE | (81) |
| H106-HDPII82 | COMPRESSION SPRING | (82) |
| H107-HDPII83 | COLLAR | (83) |
| H108-HDPII84 | NEEDLE VALVE | (84) |
| H102-HDPII85 | GUIDE BUSHING | (85) |
| H162-HDPII86 | CUP SEAL | (86) |
| H160-HDPII87 | GRUB SCREW | (87) |
| H101-HDPII88 | GUN BODY | (88) |
| H110-HDPII89 | INSERT ASSEMBLY | (89) |
| H129-HDPII90 | VALVE SEAT | (90) |
| H111-HDPII92 | RETAINING NUT | (92) |
| H133/A-HDPII93 | BLEED VALVE ASSEMBLY | (93) |
| W428W42-20 | NOZZLE STANDARD 0-°120° | |
| W46/W46-65/ W47/W47-120 |
HARDELED NOZZLES 40-65-90-120° | |
| HDPII99 | AUTOM MACHINE DAFNE 2 – WITHOUT NOZZLE |
